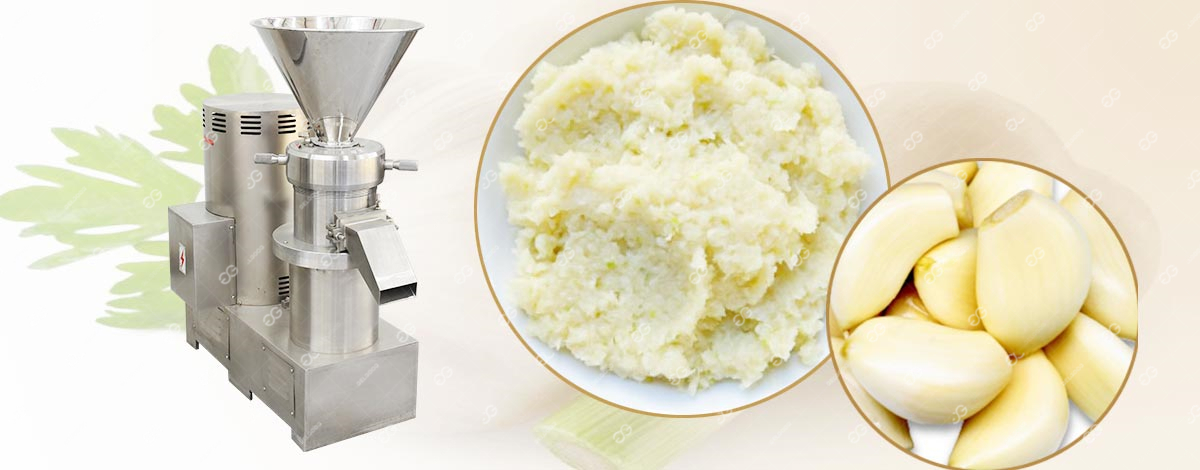

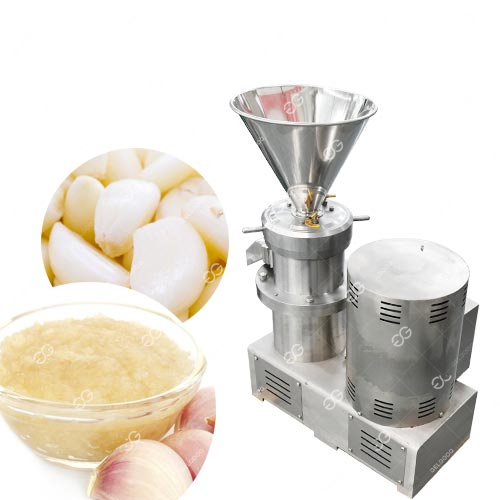

Electric Garlic Grinder Machine Ginger Garlic Paste Manufacturing Machine

  • Capacity 4T/H
  • Voltage 37kw
  • Size 1330×650×1300
  • Function Make peeled garlic into paste to make garlic sauce.
Garlic Machines Introduction

The function of the garlic grinder machine is to grind ginger, garlic, pepper, etc. into puree, and the whole process is automated. The electric garlic grinder saves labor costs and saves processing time. And its application is very wide, and it is a popular equipment in the food processing industry.


The parts of our electric garlic grinder are made of stainless steel, which is corrosion-resistant, non-toxic to food and easy to clean. Different specifications and models of colloid mills can be customized according to different material characteristics, production efficiency, and different purposes.


Working principle of electric garlic grinder:

This electric garlic grinder is driven by a motor, which drives a rotating tooth and a matching fixed tooth. There is a small adjustable gap between the two grinding bodies. When garlic passes through this gap, due to the rapid speed gradient generated by the high-speed rotation of the rotating tooth and the fixed tooth, the material is subjected to strong shear, friction, high-frequency vibration, high-speed vortex and other physical effects, so that the material is effectively emulsified , Disperse, homogenize and crush to achieve the effect of ultra-fine crushing and emulsification of garlic, making garlic become garlic paste.

Garlic Machines Features

1. The  garlic grinder mechanical structure is reasonable, simple and easy to operate, just put in the peeled garlic granules.

2. The ginger garlic paste manufacturing machine has high grinding efficiency and large output, which greatly saves production time.

3. This electric garlic grinder can be adjusted according to the required particle size.

4. The machine is small in size, occupies a small area, and can move freely.

5. This garlic grinder machine is made of high-quality stainless steel with low damage rate.

6. The electric garlic grinder uses electrical belts to operate mechanically, which has the advantage of low energy consumption.


Garlic Machines Technical Parameter

 name

 model

Material processing finances(um)

 output(t/h)

 power of motor (kw)

External size

(mm)

 weight (kg)

Garlic Grinder Machine

GGJMS-50

2-50

0.005-0.03

1.1/1.5

530×260×580

70

GGJMS-80

0.07-0.5

4

680×380×930

210

GGJMS-110

0.3-1.2

7.5

750×450×1000

280

GGJMS-130

0.4-2.0

11/15

990×450×1100

400

GGJMS-180

0.8-6.0

18.5/22

1000×480×1150

450

GGJMS-240

4.0-12

37/45

1330×650×1300

1000

GGJMS-300

6.0-25

75/90

1450×630×1420

1600

Garlic Machines Application Scene
