Garlic Powder Making Machine Garlic Powder Grinder Process

  • Capacity
  • Voltage
  • Size
  • Function
Garlic Machines Introduction

Our garlic powder making machine is simple in structure, sturdy, stable in operation and good in crushing effect. The  garlic powder making machine is made of stainless steel, and the inner wall of the casing is processed to a smooth surface, which has changed the phenomenon of rough and powder accumulation on the inner wall of the previous model. This garlic powder making machine makes the production of medicines, foods, and chemicals more in line with national standards and meets the requirements of GMP.

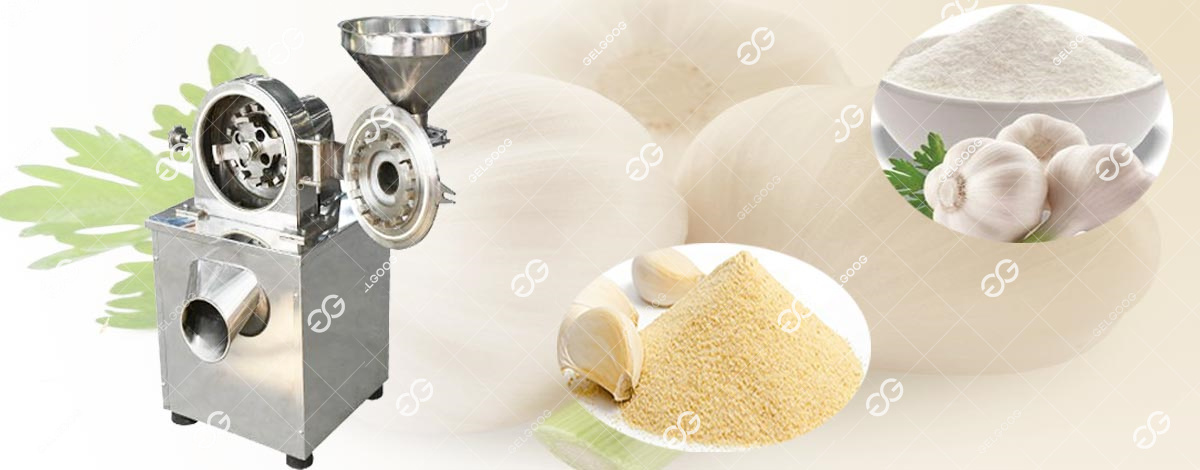

garlic powder making machine factory price.jpg

The garlic powder making process:

The garlic powder making machine consists of three parts: a frame, a crushing chamber, and a feeding hopper. The garlic powder making machine main shaft is equipped with a movable gear plate and a movable knife. A fixed gear plate is installed in the crushing door. A fixed gear ring with steel teeth is installed on the fixed gear plate. The movable knife and the fixed gear ring on the movable gear plate are arranged alternately. When the garlic powder making mechanical main shaft is running at a high level, the movable gear sleeve rotates relatively, and the material is crushed under the combined effects of mutual impact, friction, shear, and material impact between the fixed teeth and the movable teeth. The crushed materials can be directly discharged from the crushing cavity of the main garlic powder making machine , and the particle size can be obtained by changing screens with different apertures.


We are the manufacturer of garlic powder machine, if you want to know the garlic powder machine price, please contact us.



Garlic Machines Features

Garlic powder making machine advantages:

  • The inner wall of the garlic powder making machine casing is all machined to achieve a smooth surface, which changes the phenomenon of rough inner wall and powder accumulation of the previous models, and no powder accumulation occurs. The production is more in line with national standards and meets the requirements of GMP.

  • This garlic powder making machine can be obtained by selecting screens with different apertures according to its own requirements for the size of the grinding powder.

  • The garlic powder making machine is suitable for the processing of a variety of materials and has a wide range of applications. It is suitable for the processing of medicines, foods, chemicals and other products.

  • The garlic powder machine is small in size, easy to move, and greatly saves space. It can be used at home, or in fields, restaurants, hotels and other occasions.

  • The device is easy to disassemble, easy to clean, and avoid stains.

  • If the garlic powder making machine encounters problems during your operation, you can contact our after-sales service, and there will be professionals for technical guidance.


Garlic Machines Technical Parameter

Model

GG--20B-C

GG-30B-C

GG40B-C

GG60B

Capacity(kg/h)

60-150kg/h

100-300kg/h

160-800kg/h

500-1500kg/h

Revolution of spindle

4500r/min

3800r/min

3400r/min

2800r/min

Grinding size

10-200 mesh

Crusher motor

4kw

5.5kw

11kw

15kw

Cleaner motor

0.75kw

Dimension (mm)

550*600*1250

600*700*1450

800*900*1550

1000*900*1680

Weight (kg)

250

320

550

680


Garlic Machines Application Scene
