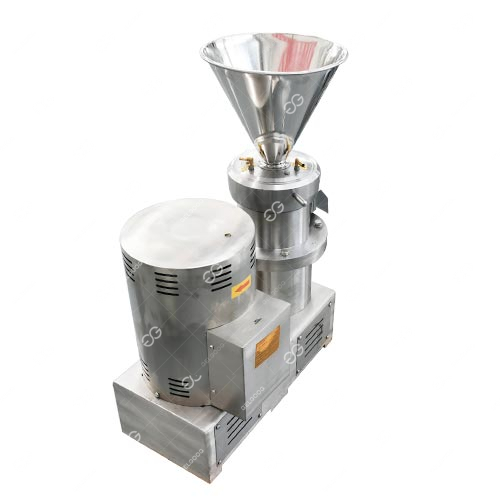

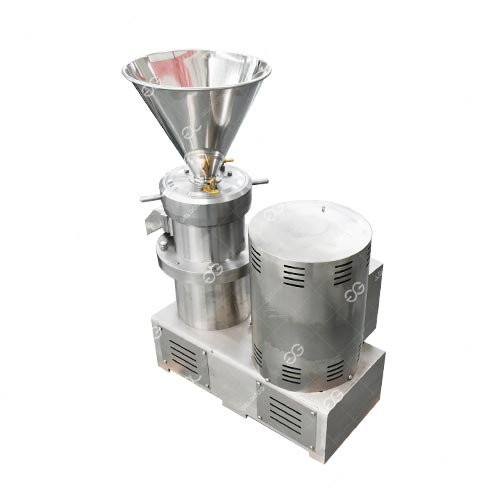

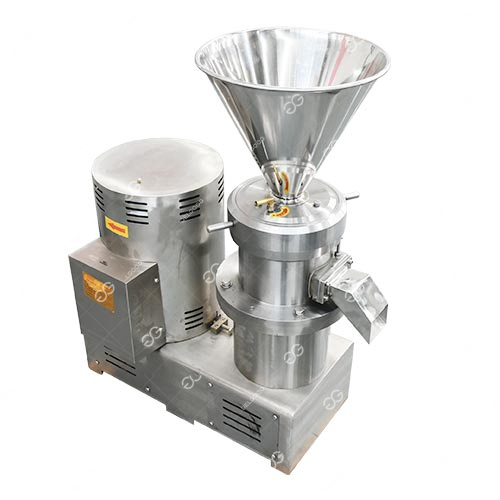

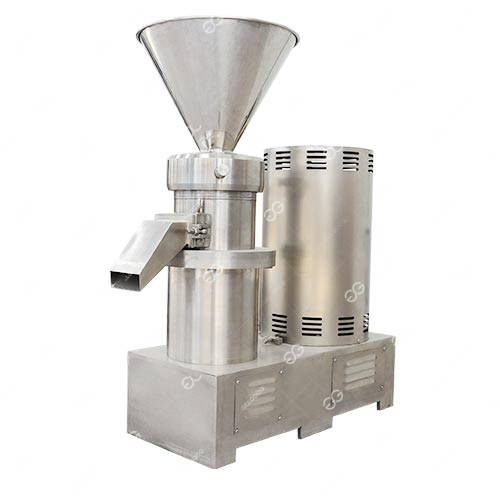

Small Scale Eletric Garlic Crusher Machine Garlic Chopper Machine

  • Capacity 70kg/H
  • Voltage 4KW
  • Size 680×380×930mm
  • Function Garlic crusher machine is to cut garlic into granules and paste.
Garlic Machines Introduction

The garlic crusher machine is to cut garlic into granules, which is suitable for applications in the food processing industry. The garlic chopper machine will not lose the original fragrance and freshness.Electric garlic crusher has a wide range of applications and can process many fruits and vegetables into pellets.Electric garlic crusher is the most ideal equipment for the fruit and vegetable processing industry.


Features of garlic chopper machine:

1. The electric garlic crusher is small in size, occupies a small space, and is easy to move.

2. The garlic crusher machine is simple to operate, electrically operated, and low energy consumption.

3. The garlic chopper machine has a wide range of applications and is suitable for a variety of industrial processors.

4. This garlic chopper machine is made of stainless steel, with long service life and corrosion resistance.

5. This electric garlic crusher does not pollute the materials, and the processed products will maintain the original flavor and color.

6. The garlic chopper machine operates stably and has a low failure rate


Working Principle of garlic crusher machine:

This small garlic crusher machine is driven by a motor, which drives a rotating tooth and a matching fixed tooth. There is a small adjustable gap between the two grinding bodies. When garlic passes through this gap, due to the rapid speed gradient generated by the high-speed rotation of the rotating tooth and the fixed tooth, the material is subjected to strong shear, friction, high-frequency vibration, high-speed vortex and other physical effects, so that the material is effectively emulsified , Disperse, homogenize and crush to achieve the effect of ultra-fine crushing and emulsification of garlic, making garlic become garlic paste.



Garlic Machines Features

Advantages of electric garlic crusher:

1. The electric garlic crusher can adjust the size of the grinded particles according to your needs.

2. The garlic crusher machine is made of stainless steel, lead-free, non-toxic, non-polluting to the material, and the surface is bright and beautiful, not easy to rust, and easy to clean.

3. The garlic chopper machine has a wide range of applications, suitable for material grinding in the food industry, chemical industry, pharmaceutical industry, daily chemical industry, construction industry and other industries.

4. The garlic crusher mechanical micronization has the functions of mixing, stirring, dispersing and emulsification at the same time, and the particle size of the finished product is up to 50 microns.

5. During the operation of this garlic chopper machine, we will provide professional technical personnel for guidance.

Garlic Machines Technical Parameter

 Name

Model

Material processing finances(um)

 Output(t/h)

Power of motor (kw)

External size

(mm)

Weight (kg)

Colloid mill

GGJMS-50

2-50

0.005-0.03

1.1/1.5

530×260×580

70

GGJMS-80

0.07-0.5

4

680×380×930

210

GGJMS-110

0.3-1.2

7.5

750×450×1000

280

GGJMS-130

0.4-2.0

11/15

990×450×1100

400

GGJMS-180

0.8-6.0

18.5/22

1000×480×1150

450

JMS-240

4.0-12

37/45

1330×650×1300

1000

GGJMS-300

6.0-25

75/90

1450×630×1420

1600
